Battery Box H9
Innovative 3D-Printed Battery Box Design for Hyperloop UPV electric vehicle
Battery Box H9
Individual Project
Renders by Carmen Hernandez
Renders by Carmen Hernandez
Designed for the latest Hyperloop UPV electric vehicle, Vèsper, the powering system incorporates two 3D-printed battery boxes, each focused on maximizing performance and space optimization.
Softwares
SolidWorks
Figma
The electrical circuit’s complete design and specifications were created by Stefan Costea.
246.95 kg
Nominal levitation 5 mm
Maximum speed 60Km/h
Maximum speed 60Km/h
Length 2.4 m
Width 0.69 m
Height 0.63 m
Width 0.69 m
Height 0.63 m
All Power by...

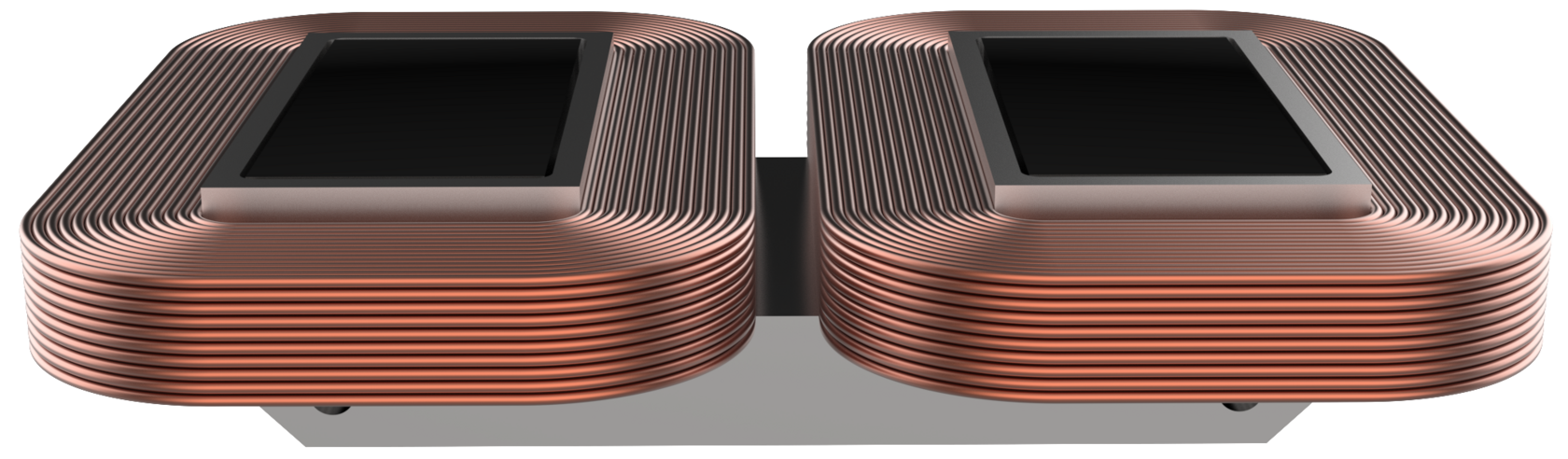

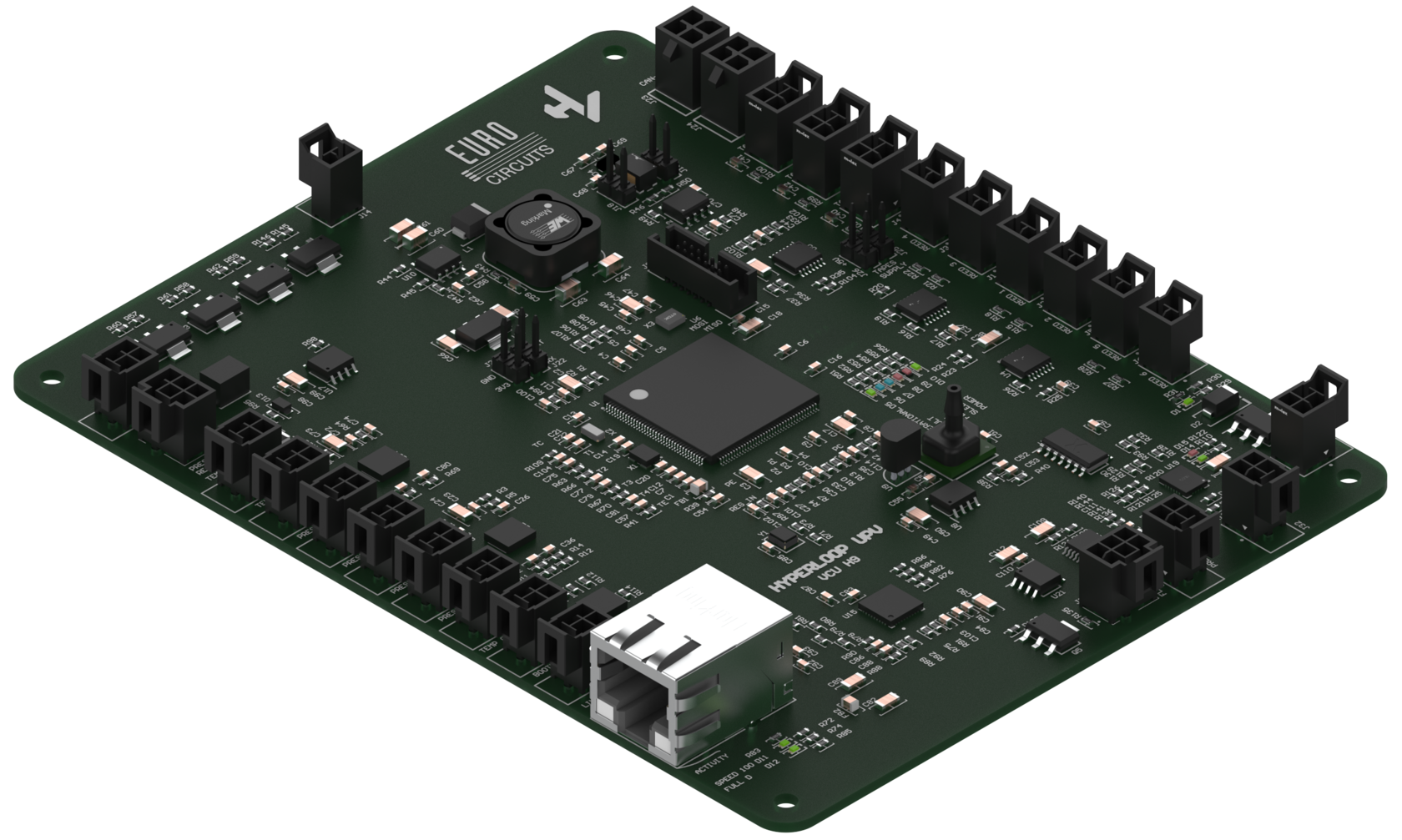

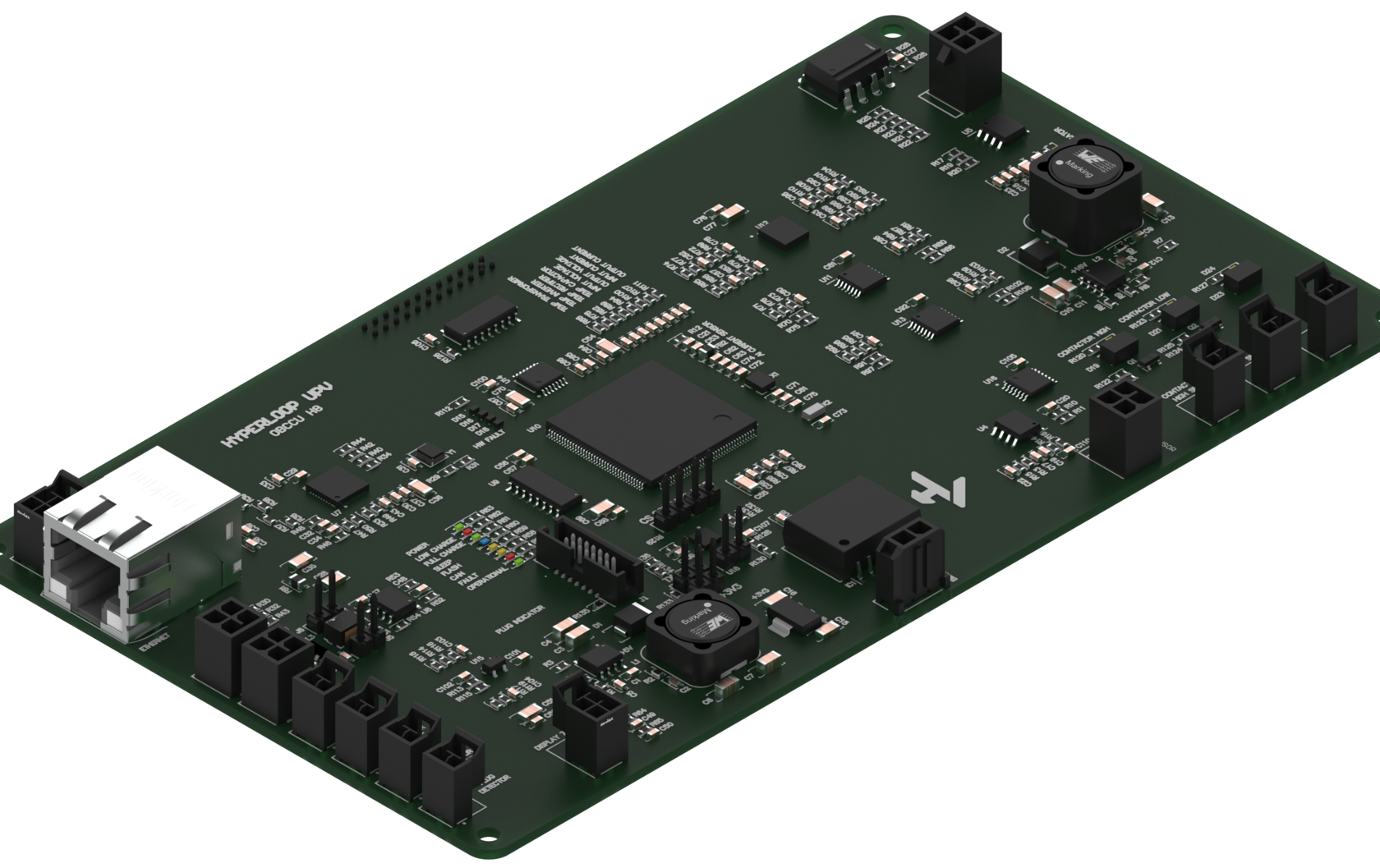

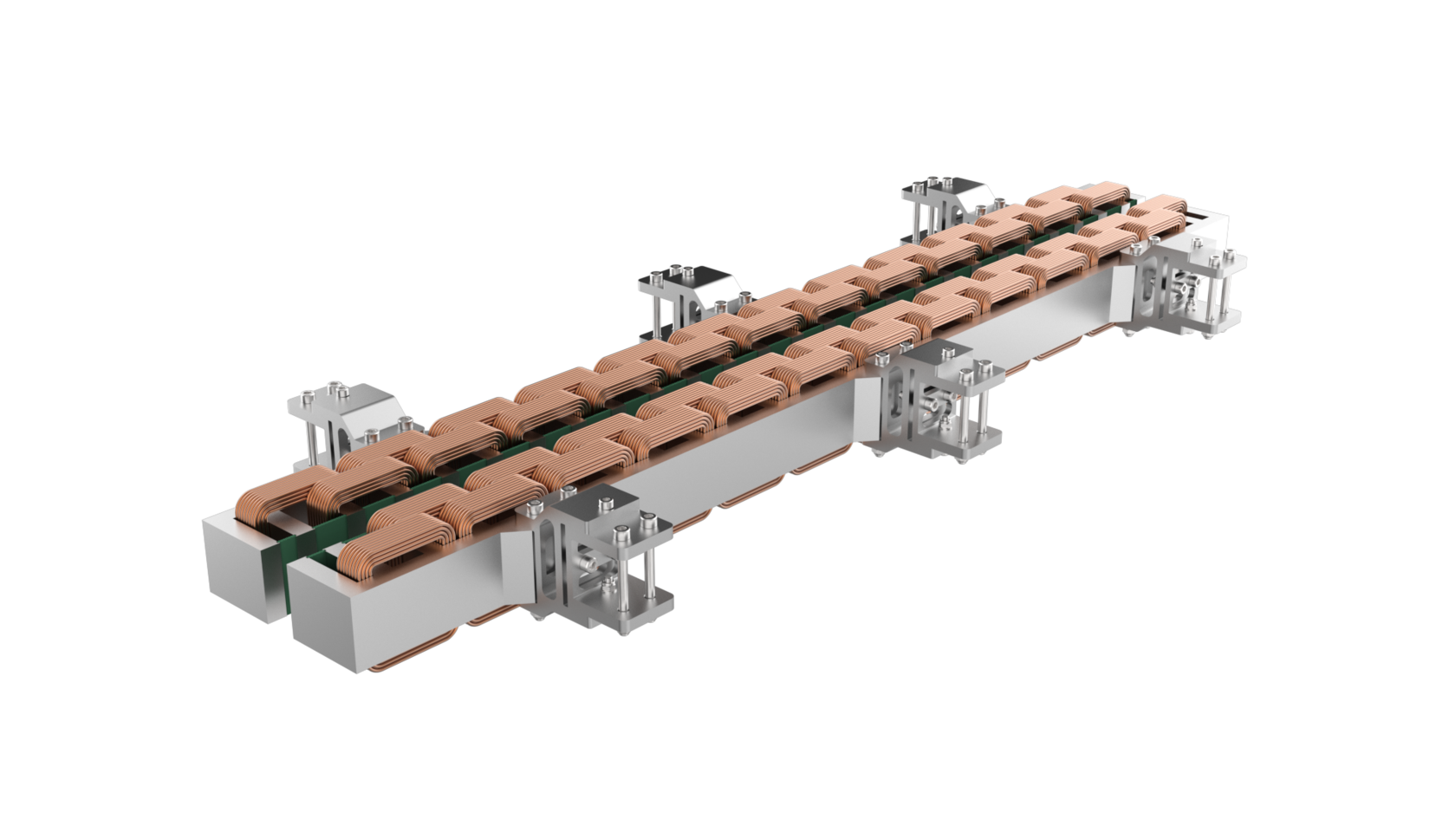

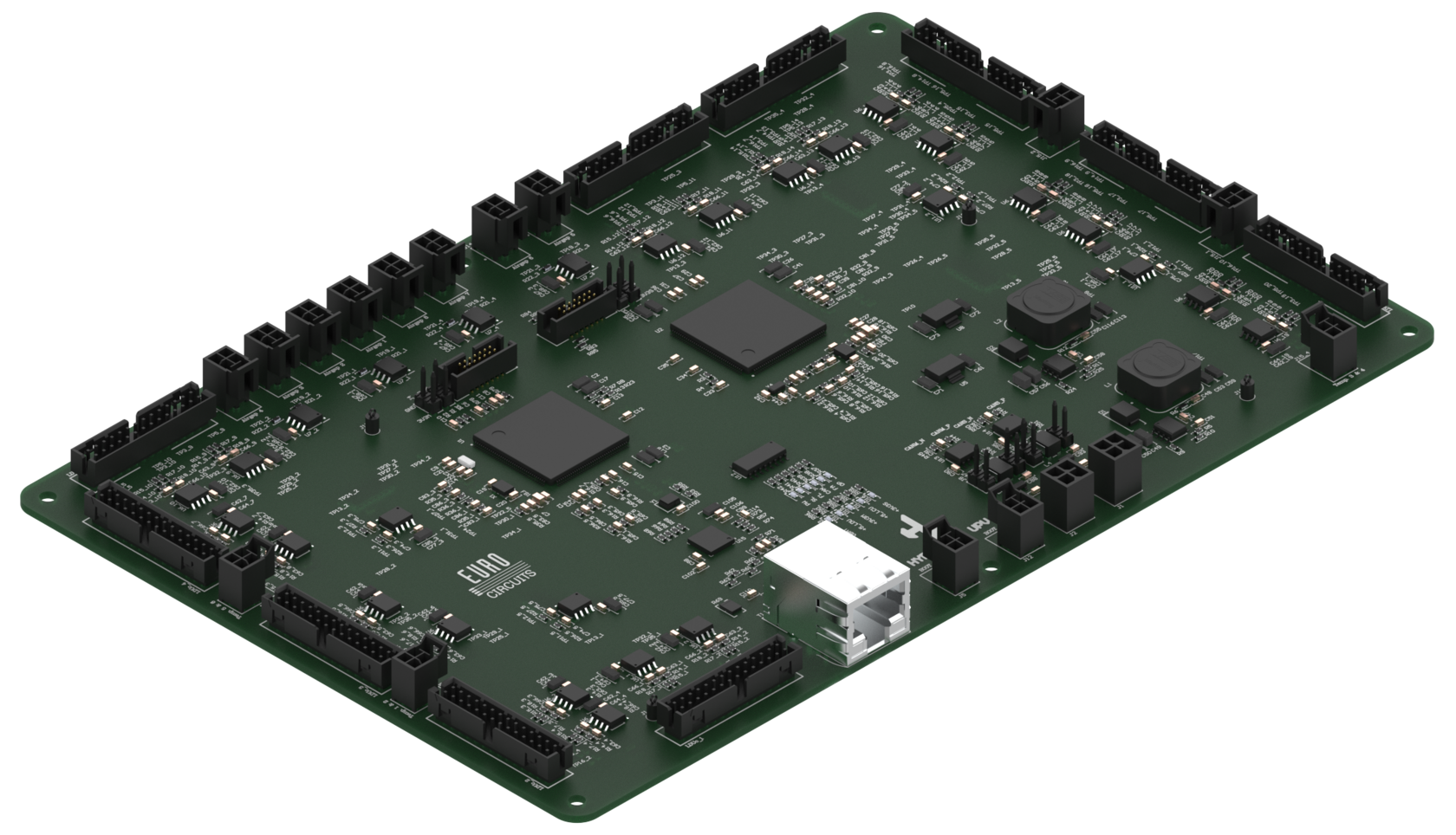

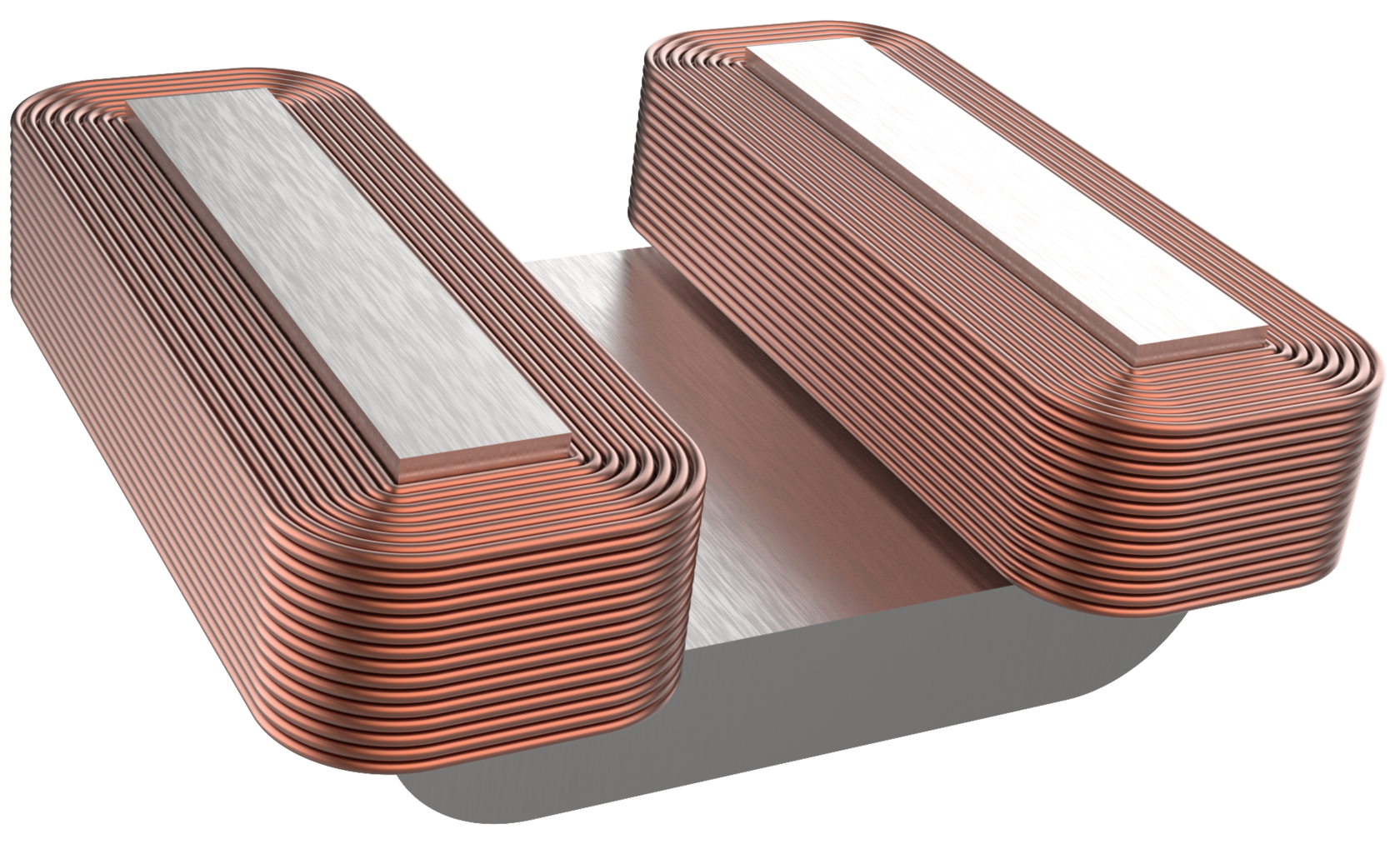

The system employs two distinct battery packs to meet its power requirements. A 24 V Low Voltage Li-Ion cell battery pack powers the control boards, while a High Voltage 220 V Li-Po battery pack, operating at nominal voltage, is used to supply power to the motor and levitation units.
High Voltage
Low Voltage

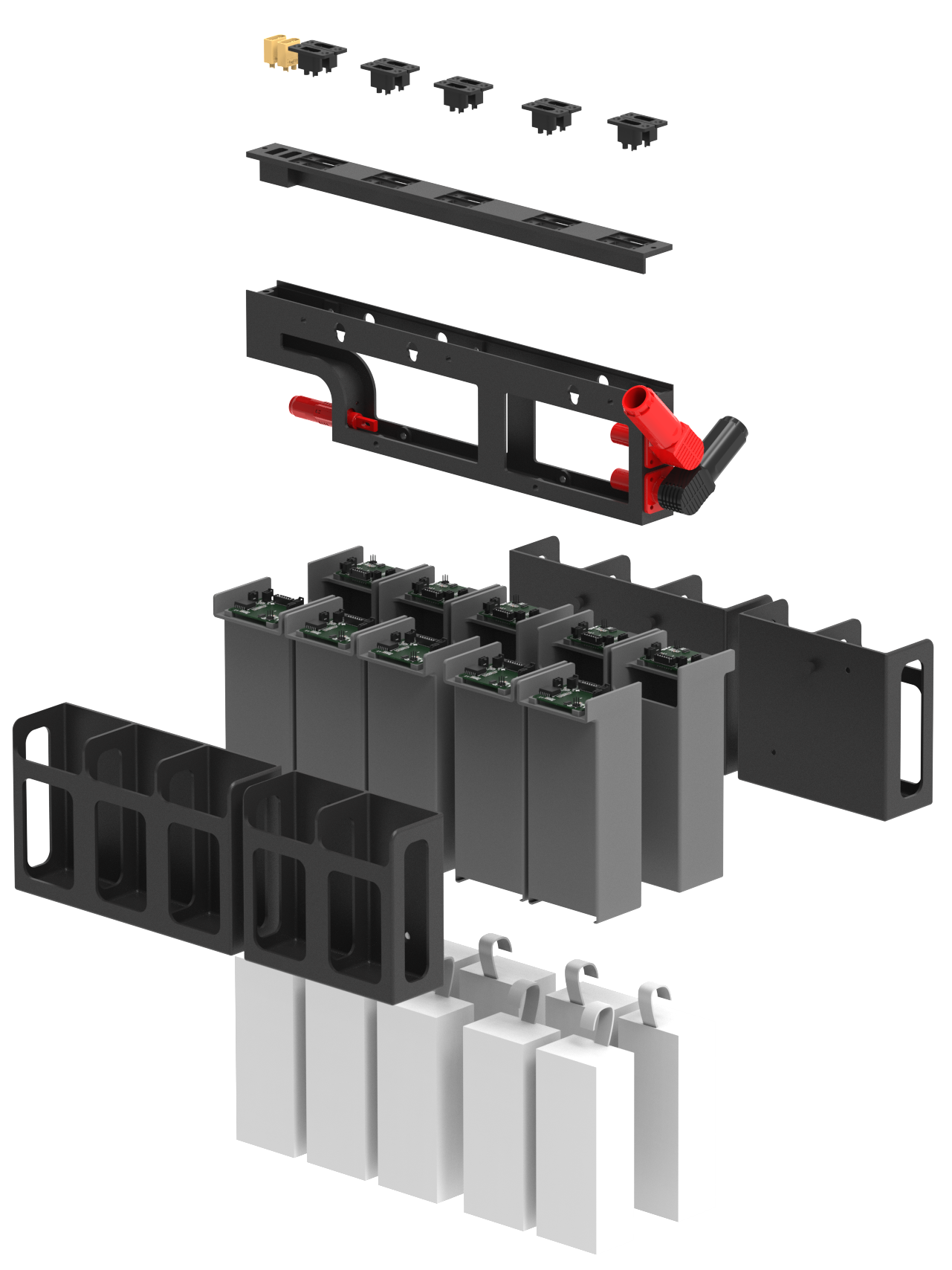

High Voltage System
The box is composed of multiple 3D-printed components that seamlessly fit together using threaded inserts. Each battery is grouped with its Battery Management System (BMS) for ease of installation and replacement. Additionally, multiple battery enclosures are used to secure the entire assembly within the vehicle, ensuring the box's stable positioning.
Cable Container
x10 Comercial
LiPo Bateries
LiPo Bateries
XT90 Connectors
XT90
Connectors Cover
Connectors Cover
x10 Individual Battery Enclosure
Multiple Battery Enclosures
The box is designed with a focus on the safety of the operator. Utilizing commercially available connectors, the box can isolate all current supplied to the system at three connection points. Additionally, customized power strips have been incorporated to separate the vehicle's permanent power wiring from the wiring that must remain accessible for connecting various power boards. The following diagrams illustrate the routing of the wires throughout the circuit.

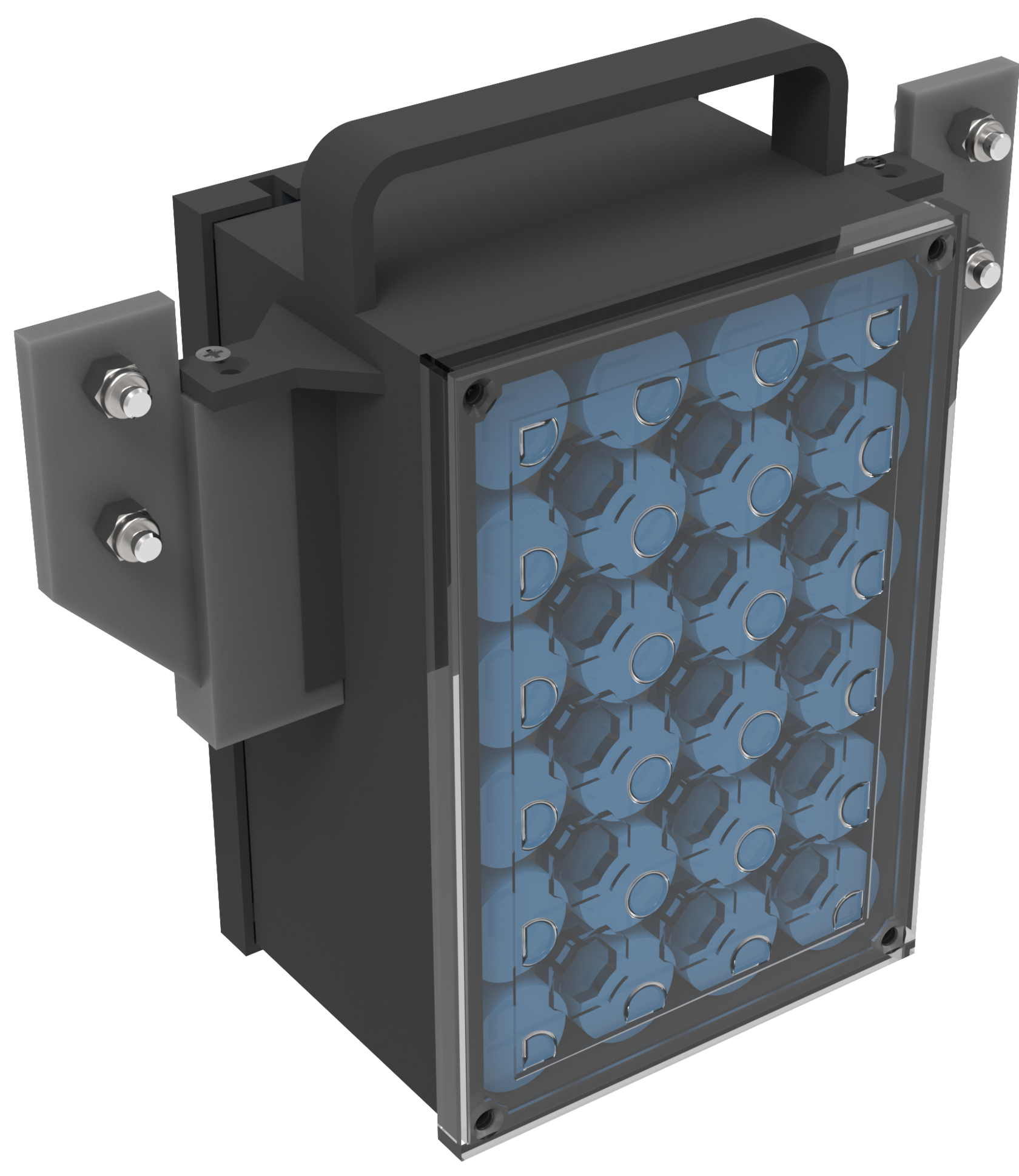

Low Voltage System
The low battery pack is designed as a single unit that utilizes commercially available grids to facilitate manual threading with nickel strips. It is mounted to the vehicle using a sliding system that optimizes space efficiently.
Capacity: 19.8 Ah
960 W - 24 V - 40 A
6S4P Li-ion
2.82 h
of battery life
Tilda Publishing
Manufacturing & Assembly
While the design of the boxes was completed individually, several members of Hyperloop UPV contributed to their fabrication and assembly.
